Impregnated Lumber
I S O 9 0 0 2
Q U A L I T Y
M A N A G E M E N T
S Y S T E M
Produd line Production of impregnated
sleepers for railways, sleeper-like products, switches, girders for brid
ges, small-size sleepers.
Beech and oak wood.
ProA`I.^tion of imoreanated ogles for
overqround electric and telecommunication grids.

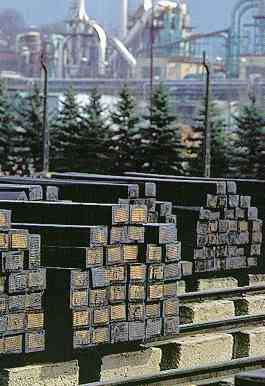

1. SLEEPERS
Dimensions 15 x 26 x 260/250
cm
15 x 24 x 260/250 cm
15 x 22 x 260/250 cm
2. WHITE-PEELED POLES
Dimensions length: 6, 6.5, 7
m pin (span): 13/ 15 cm
length: 8, 9 m pin (span): 14- 16 cm
length: 10,11 m pin (span): 15 - 17
cm
ILL. 1^, m rain 1~r~r~nl lit, / 1R
.^m
Impregnation Pressure-vacuum
impregnation of wood using the following protection agents:
a) creosote oils - impregnation oil
500 and impregnation oil 50
b) water soluble substance Wolmanit
CX-S
Impregnation of beech sleepers by creosote
oil according to the STN 490616 standard - stage 2
of the method of double Rueping
Possibility of impregnation of oak
wood from summer harvesting with humidity over 50 % by creo
sote oil according to the STN 490616
standard part 1 in two stage procedure 2P.
Impregnation of wood poles by creosote
oil according to the STN 490617 standard, single
Rueping, modified method, or by Wolmanit,
procedure pursuant to Bethel
Creosote oil Impregnation with
creosote oil ensures protection of the wood for its use in risk class 4,
pursuant
to DIN 68 800,-that is protection against
wood destructive mold, atmospheric agents and contact
with soil. During handling it is necessary
to use protective tools.
By the decision of Lignotesting, the
Public Testing Institute SKTC 113 number 08-T-130 for impreg
nated sleepers - double Rueping and
number 08-T-129 for impregnated sleepers - 2P procedure,
we are entitled to label our products
with the certification mark.
wolmond a - s The
impregnation with water soluble substance Wolmanit CX - S provides for
the protection of the
wood in case of its application in
risk classes 2,3, and 4, DIN 68 800, in the case substance into
ke 2 to 3 kg/m3 of the wood (according
to client's preferences). Aher the application the substan
ce will not be eluted from the wood.
The products may be used both for indoor and outdoor appli
cations. The protective agent preserves
the wood against atmospheric agents and against contact
with soil. Wolmanit CX-S may be used
for impregnation of poles, construction timber, products for
agricultural purposes and also of other
wood products (hotbeds, flower containers, play grounds
for children, sand pits, etc.)
|
