Bed Rails
I S O 9 0 0 2 Q U A L
I T Y
M A N A G E M E N T S Y S T E M
Produdct description

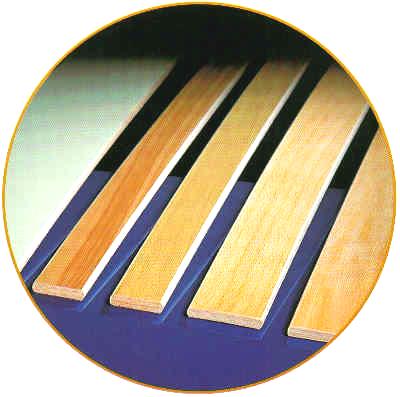

Bed rails are made from peeled veneers
glued together with a moisture resistant glue. The veneers are laid in
the same direction of the fiber. The thickness of a veneer is 1,7 mm +/-
0,15 mm.
We also deliver surface finished bed
rails with melamine foil. Bed rails are manufactured according to the Technical
Specification 153524.
Wood Beech Dimensions
Length: 550 - 900 +/- 1 mm Length:
1 100 - 1 850 +/- 1 mm
Width: 53 and 68 +/- 1 mm Width: 68,
75, 80 +/- 1 mm
Thickness: 8, 10, 12, 14 Thickness:
8, 10,12, 14
Radius: 3 500 mm Radius: 8 000 mm
Height of the Arch: 30 - 45 mm +3 mm
-2 mm Height of the Arch: 50 - 70 mm +5 mm -3 mm
Edge rounding: r = 5 Edge rounding:
r = 7
Number of layers: 5 Number of layers:
7
Physical end mechanical
Density: max. 900 kg/m3
characteristics
Right angle: 90 degrees +/- 1
Humidity at the time of shipment: max.
12%
Combustibility according to the STN
73082 standard: C2 level
The gluing quality meets the STN 490173
standard. The product complies with the IW20 standard for use in closed
areas with low air humidity.
Transportation and storing
Bed rails are transported in closed
vehicles, laid on pallets and fastened with a banding strip.
|
